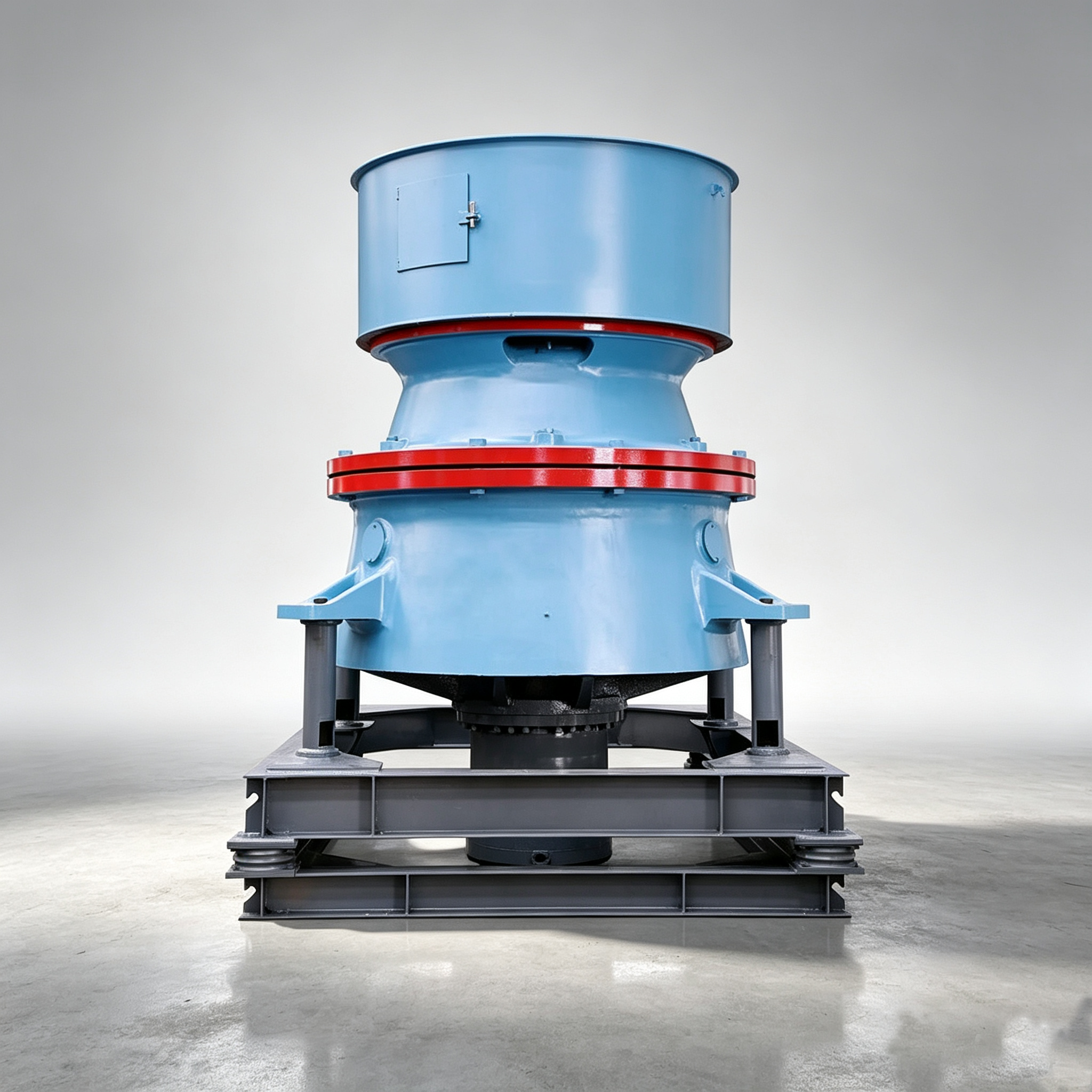

XY Single Cylinder Hydraulic Cone Crusher High Output Stable Multi Application
The XY Single-cylinder Hydraulic Cone Crusher is a high-performance crushing solution engineered by Xinyida Machinery to deliver exceptional output, superior product quality, and operational flexibility for modern aggregate and mining operations. Designed with optimized crushing dynamics and premium components, this crusher maintains reliable performance even under the most severe operating conditions.
High Performance & High Output. The XY series features an optimized crushing chamber profile and proven dynamics that achieve a high crushing ratio and superior product shape. The dynamic discharge opening adjustment system ensures stable and optimal final product quality at all times, while the high-output design maximizes the production of premium finished materials.
Superior Product Quality. A larger crushing angle allows the XY crusher to operate trouble-free across various feed conditions, ensuring consistent particle shape and size distribution. The result is a high-quality, cubical final product that meets the most stringent specifications.
Stable Operation & Flexible Adjustment. The adjustable eccentricity feature provides convenient control over crusher output, allowing seamless coordination with upstream and downstream equipment. This flexibility maintains choke feed conditions and optimal discharge opening settings, ensuring peak output while achieving the required final product size.
Larger Discharge Opening & Multi-purpose Functionality. With a larger discharge opening, the crusher offers enhanced system handling capacity and can be adjusted to a wider setting as needed. The ability to continuously adjust the discharge opening under load significantly reduces downtime. Furthermore, a wide selection of crushing chamber profiles and eccentricities enables the same crusher to perform secondary, fine, and even super-fine crushing operations, offering unmatched versatility for diverse application requirements.
Engineered for durability, reliability, and efficiency, the XY Single-cylinder Hydraulic Cone Crusher is the ideal choice for operations seeking a flexible, high-output crushing solution. For specific application needs and capacity data, please contact Sichuan Xinyida Machinery Co., Ltd.
|
Model
|
Chamber Type
|
Discharge Opening(mm)
|
Feed Opening (mm)
|
Throughput(t/h)
|
Electric Power(kw)
|
|
XY-440
|
Extra Coarse
|
16-44
|
215
|
114-422
|
250
|
|
Coarse
|
13-44
|
175
|
|
Medium Coarse
|
13-38
|
110
|
|
Medium
|
13-38
|
110
|
|
Medium Fine
|
10-32
|
85
|
|
Fine
|
8-32
|
70
|
|
Extra Fine
|
6-7.5
|
38
|
|
XY-660
|
Extra Coarse
|
16-51
|
275
|
177-662
|
315
|
|
Course Extra
|
16-51
|
245
|
|
Coarse
|
16-51
|
215
|
|
Medium Coarse
|
16-44
|
175
|
|
Medium
|
16-38
|
135
|
|
Medium Fine
|
13-38
|
115
|
|
Fine
|
13-38
|
85
|
|
Extra Fine
|
13-22
|
65
|
|
XY-870
|
Extra Coarse
|
22-70
|
300
|
280-1500
|
600
|
|
Coarse
|
19-70
|
240
|
|
Medium Coarse
|
19-70
|
195
|
|
Medium
|
19-70
|
155
|
|
Medium Fine
|
16-51
|
100
|
|
Fine
|
13-44
|
90
|
|
Extra Fine
|
10-44
|
80
|
